Product Description

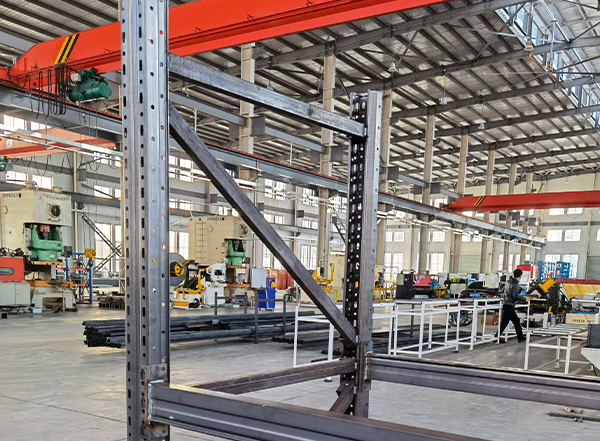

Warehouse shelf upright roll forming machine also named Pallet Racking Roll Forming
Machine (s) is developed to produce upright frame / upright racks.
Our intelligent roll forming machine could make various sizes of upright with
Our intelligent roll forming machine could make various sizes of upright with
thickness 1.5-3.0mm. Uncoiling, servo feeding, punching, roll forming, cutting etc process
can be automatically realized on one line. Meantime, we have the roll forming machine to
make box beam, step beam and shelf panels. All these are components of Pallet racking
system.

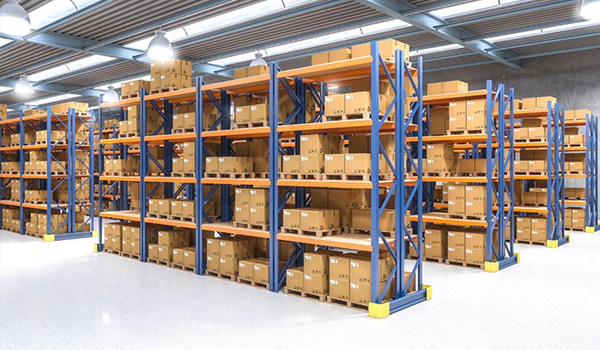

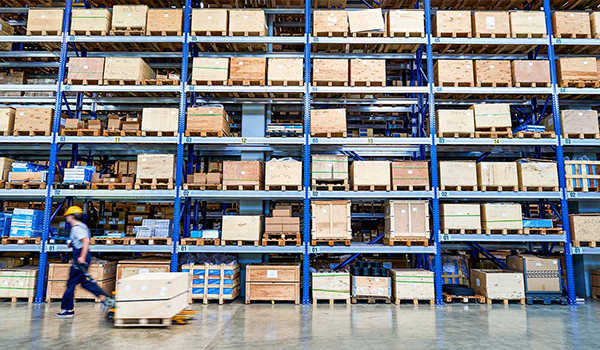

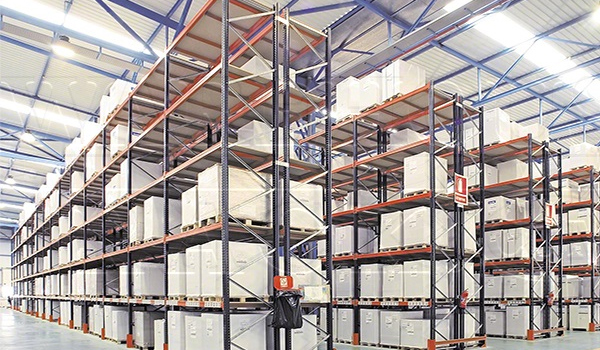

Pallet Racking is a cost effective solution for storing palletized goods. Consisting
Pallet Racking is a cost effective solution for storing palletized goods. Consisting
of separate frames and beams that are available in a huge range of sizes, and secured
with locking pins, Pallet Racking is easily configured to your needs whether led by pallet
size or forklift type.
In warehouse pallet racking system, we are able to manufacture more machines like
In warehouse pallet racking system, we are able to manufacture more machines like
Box beam roll forming machine, step beam roll forming machine and shelf panel
(box plate) roll forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget,
We make different solutions according to customers’ drawing, tolerance and budget,
offering professional one-to-one service, adaptable for your all requirements. Whichever
line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly
functional profiles.

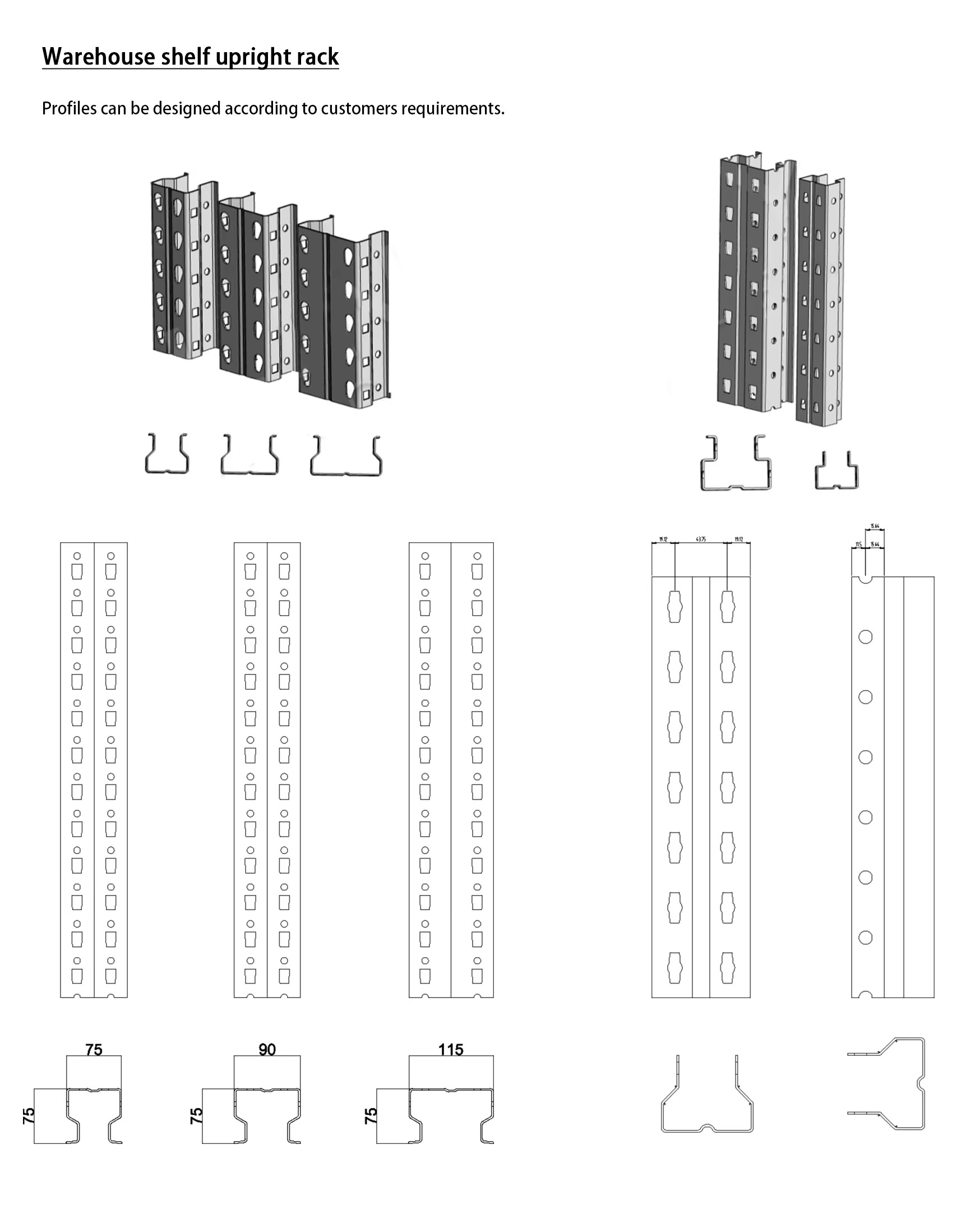

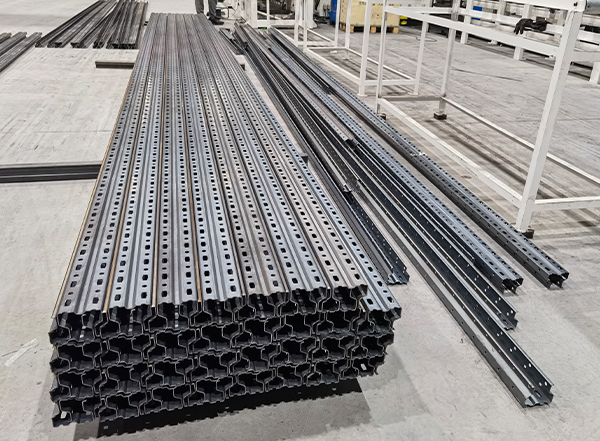

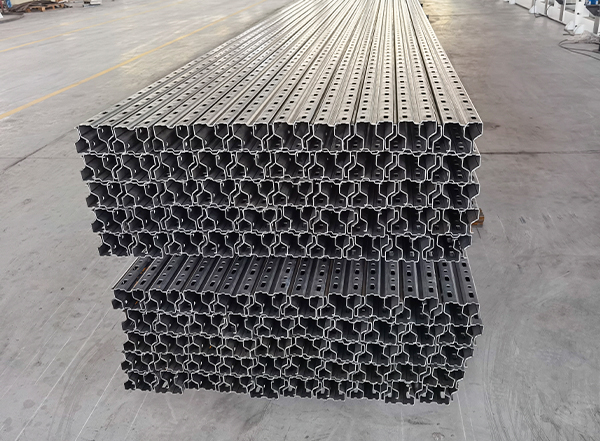

Profile Drawings

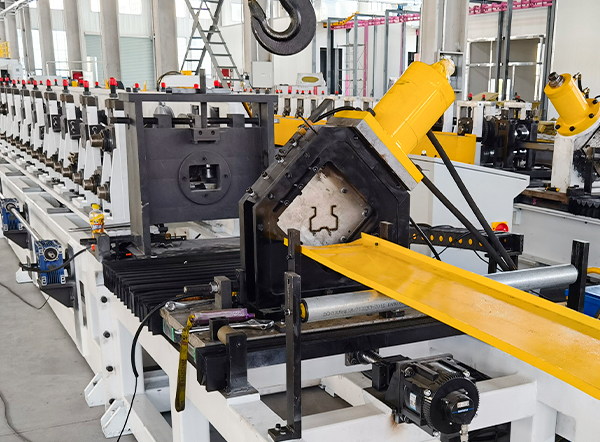

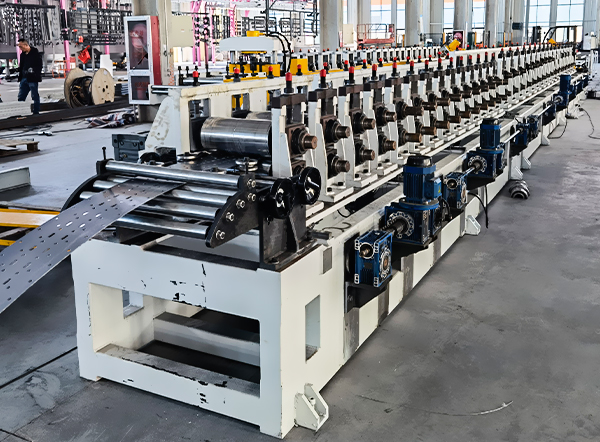

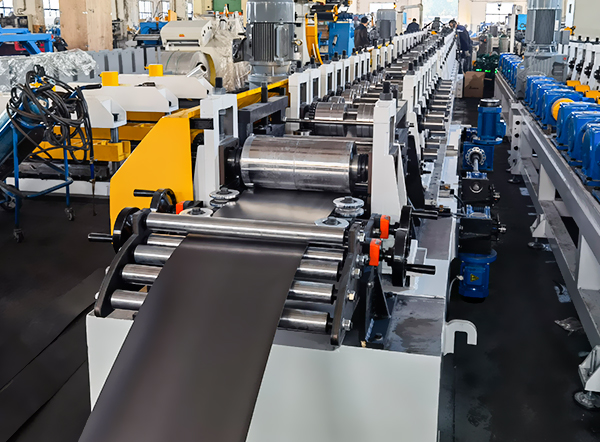

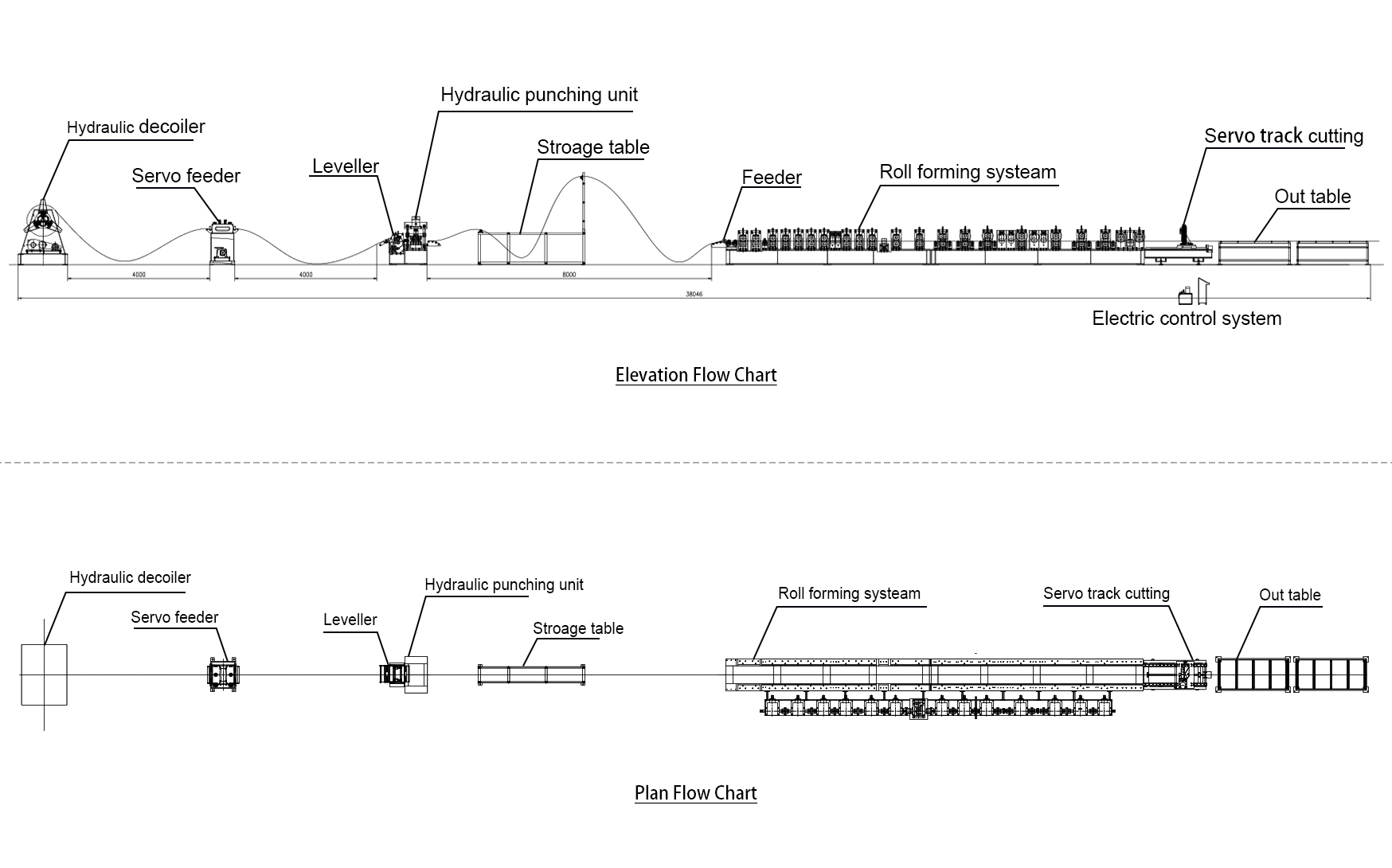

Production Line

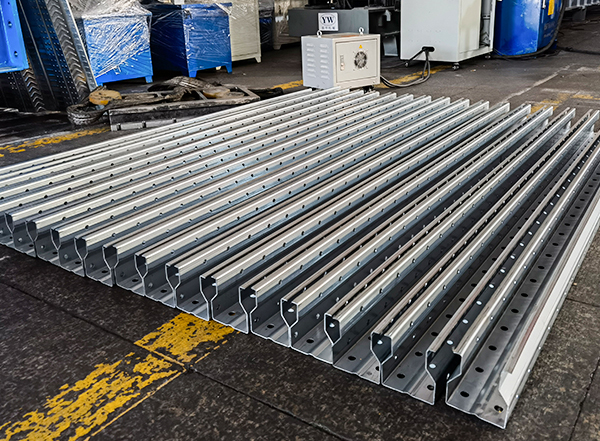

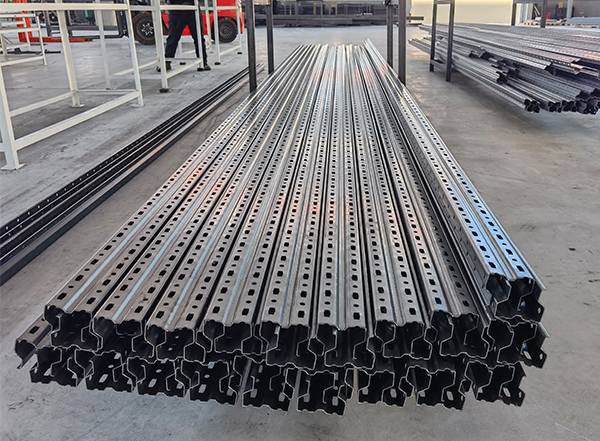

Product Details

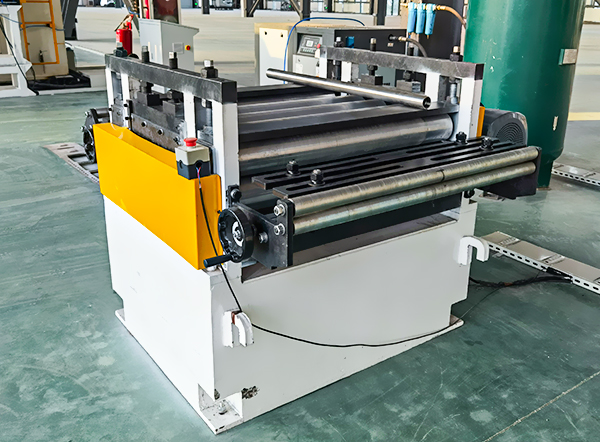

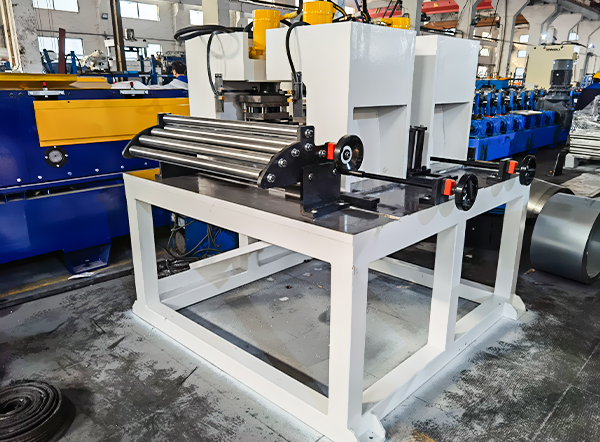

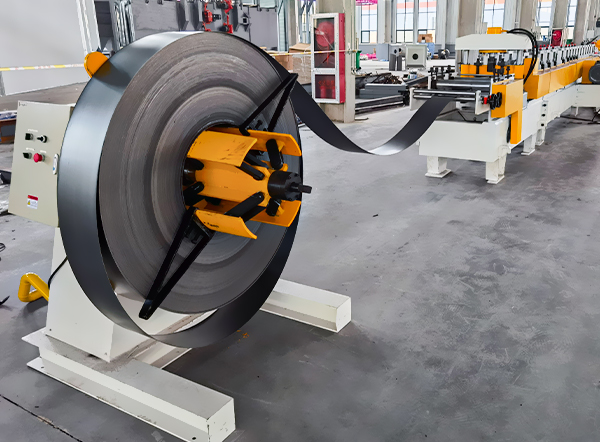

Hydraulic Decoiler Leveller Unit

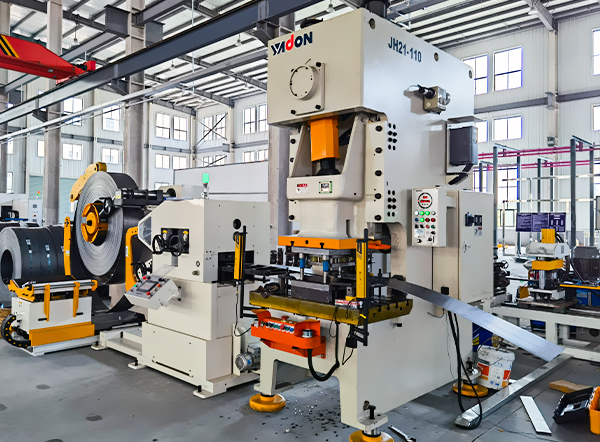

Hydraulic Punching Unit Press Machine

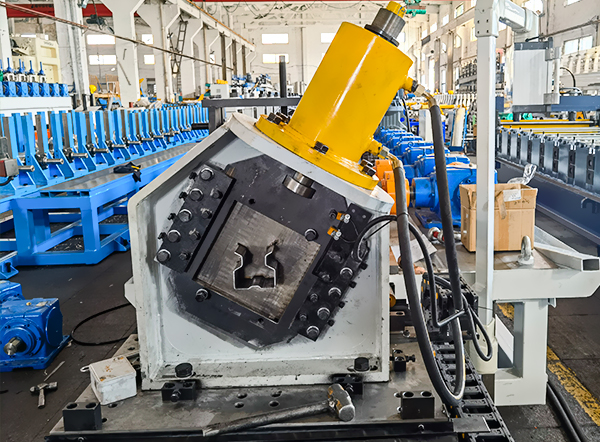

Post Cutter Post Cutter
Automatic Movable Roll Forming Machine Suitable For Different Widths Cable Trays
Product Paramenters
| Warehouse Shelf Upright Roll Forming Machine | ||
| Machinable Material | A) Galvanized Steel | Thickness(MM): 1.5-3.0 as per customer |
| B) Stainless Steel | ||
|
Yield Strength
|
250 – 550 Mpa
|
|
|
Tensil Stress
|
G250 Mpa-G550 Mpa
|
|
|
Decoiler
|
Manual Decoiler
|
*Hydraulic Decoiler (Optional)
|
|
Punching System
|
Hydraulic Punching Station
|
*Punching Press (Optional)
|
|
Forming Station
|
About 25 Stands
|
*According To Your Profile Drawings
|
|
Driving System
|
Chain Drive
|
*Gearbox Drive (Optional)
|
|
Machine Structure
|
Wall Panel Station
|
*Cast Iron Stands (Optional)
|
|
Forming Speed
|
5-15 (M/MIN)
|
*Or According To Your Profile Drawings
|
|
Rollers’ Material
|
GCr 15
|
*Cr12 (Optional)
|
|
Cutting System
|
Hydraulic Cutting
|
*Saw Cutting (Optional)
|
|
Frequency Changer Brand
|
Yaskawa
|
*Siemens (Optional)
|
|
PLC Brand
|
Panasonic
|
*Siemens (Optional)
|
|
Power Supply
|
380V 50Hz 3ph
|
*Or According To Your Requirment
|
|
Machine Color
|
Industrial Blue
|
*Or According To Your Requirment
|

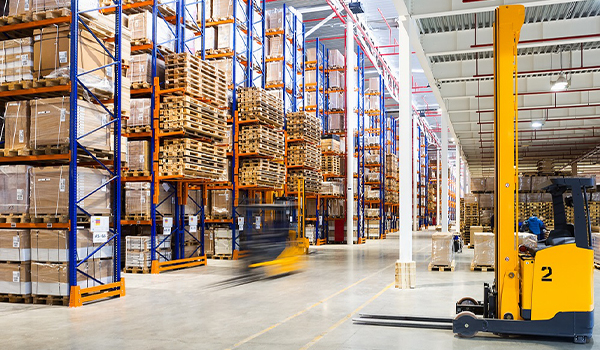

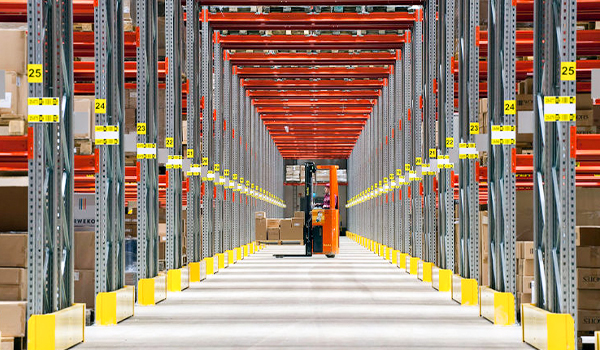

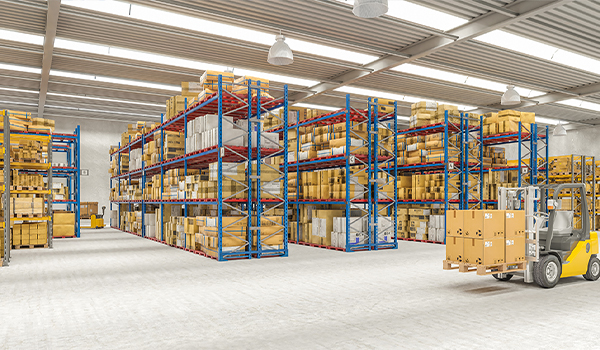

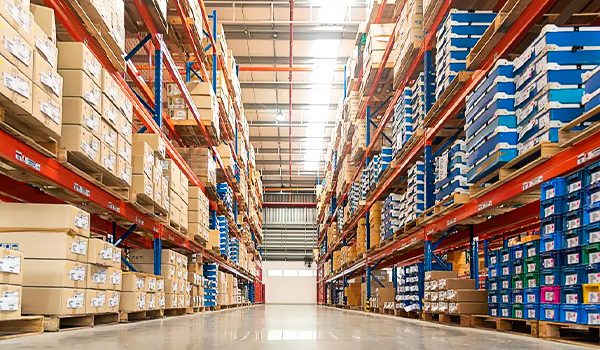

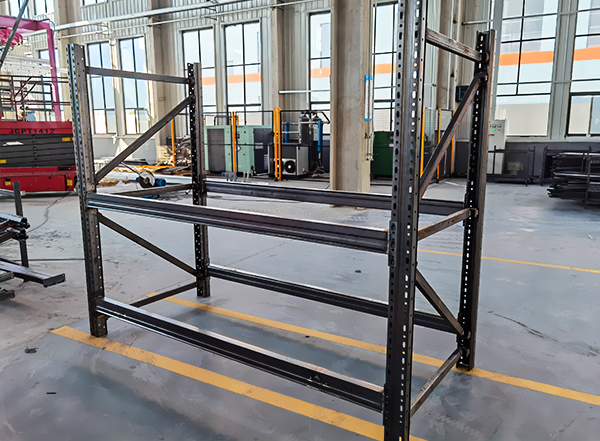

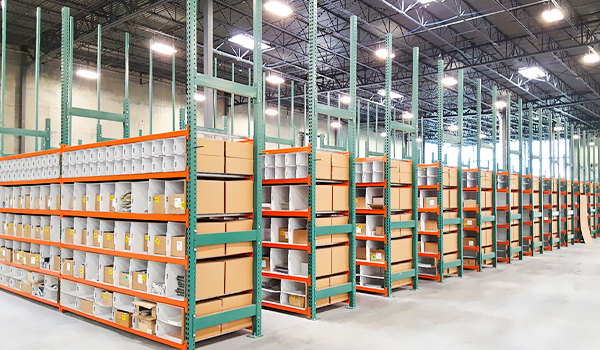

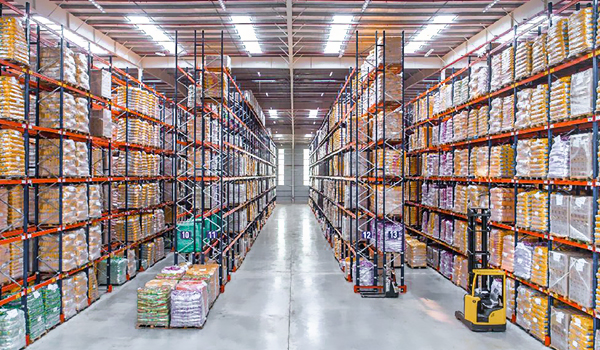

Application
