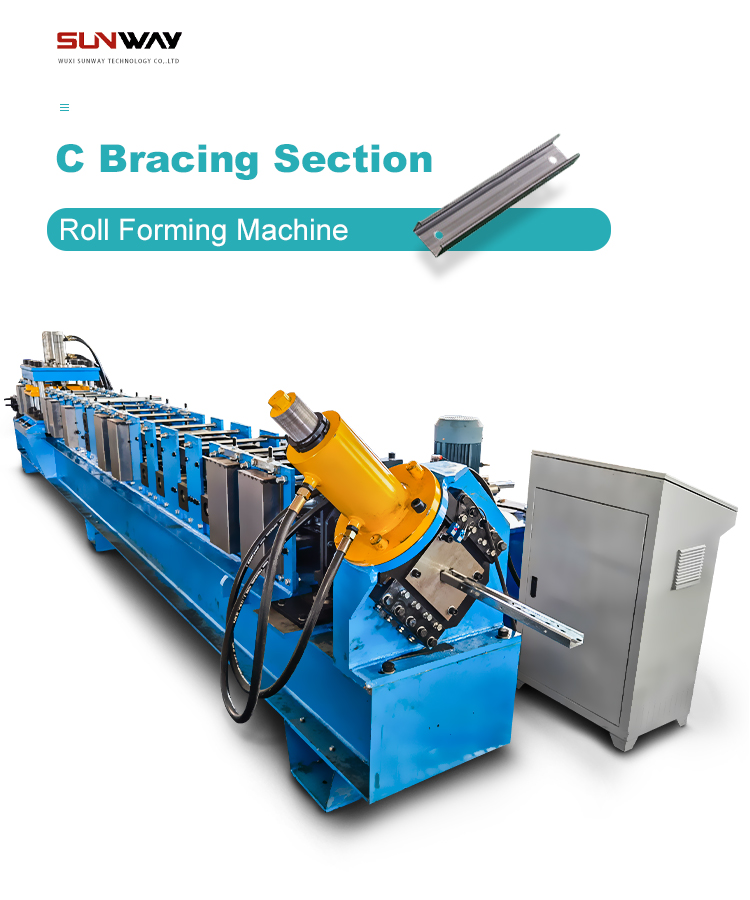

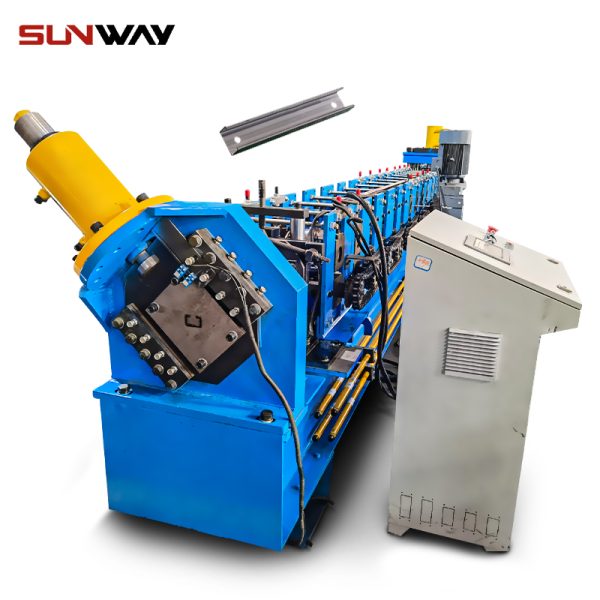

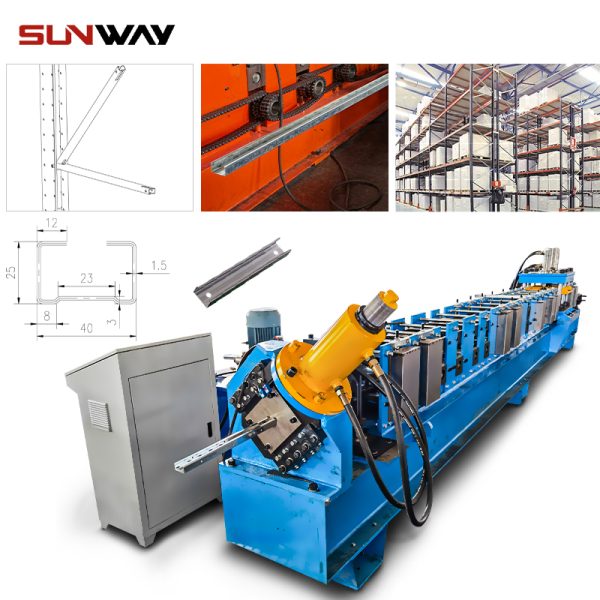

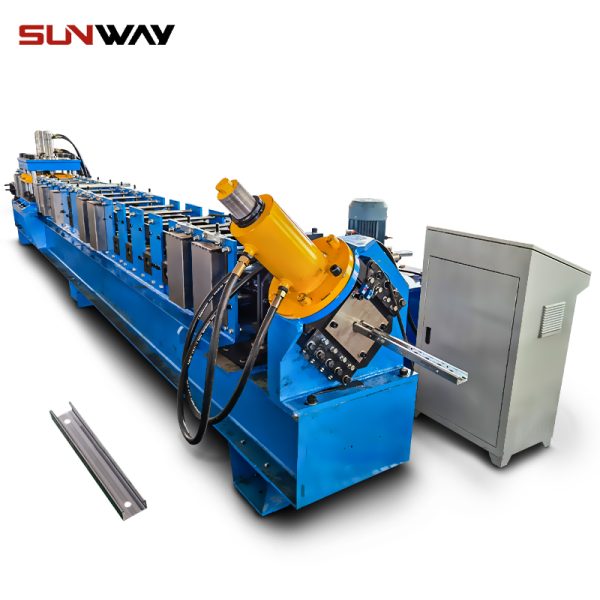

C Bracing Section Roll Forming Machine

Product Description

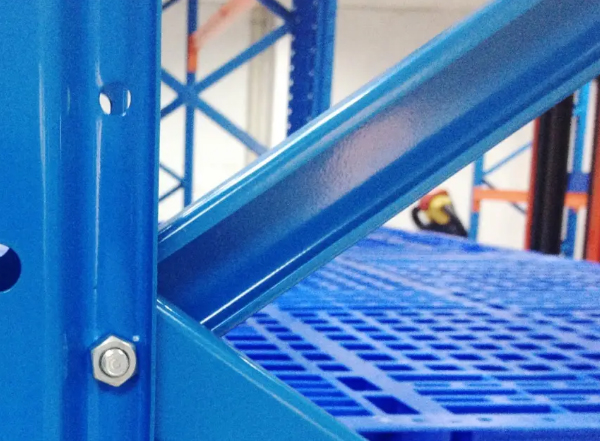

C Bracing Section Roll Forming Machine also named C beam roll forming machine is

developed to produce C beam which is for supporting the uprights rack and shelving

panels at the side of the whole warehouse pallet tacking system.
Our intelligent C Bracing Section Roll Forming Machine could make various sizes of

C beam according to the rack system requirements and thickness normally 1.5-1.8mm.

Uncoiling, feeding, roll forming, punching, cutting, etc process can be automatically

realized on one line. Meantime, we have the roll forming machine to make step beam,

upright rack, box beam and shelf panel. All these are components of Pallet racking

system.
In warehouse pallet racking system, we are able to manufacture more machines like

Step beam roll forming machine, Upright rack roll forming machine and box beam roll

forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget,

offering professional one-to-one service, adaptable for your all requirements. Whichever

line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly

functional profiles.

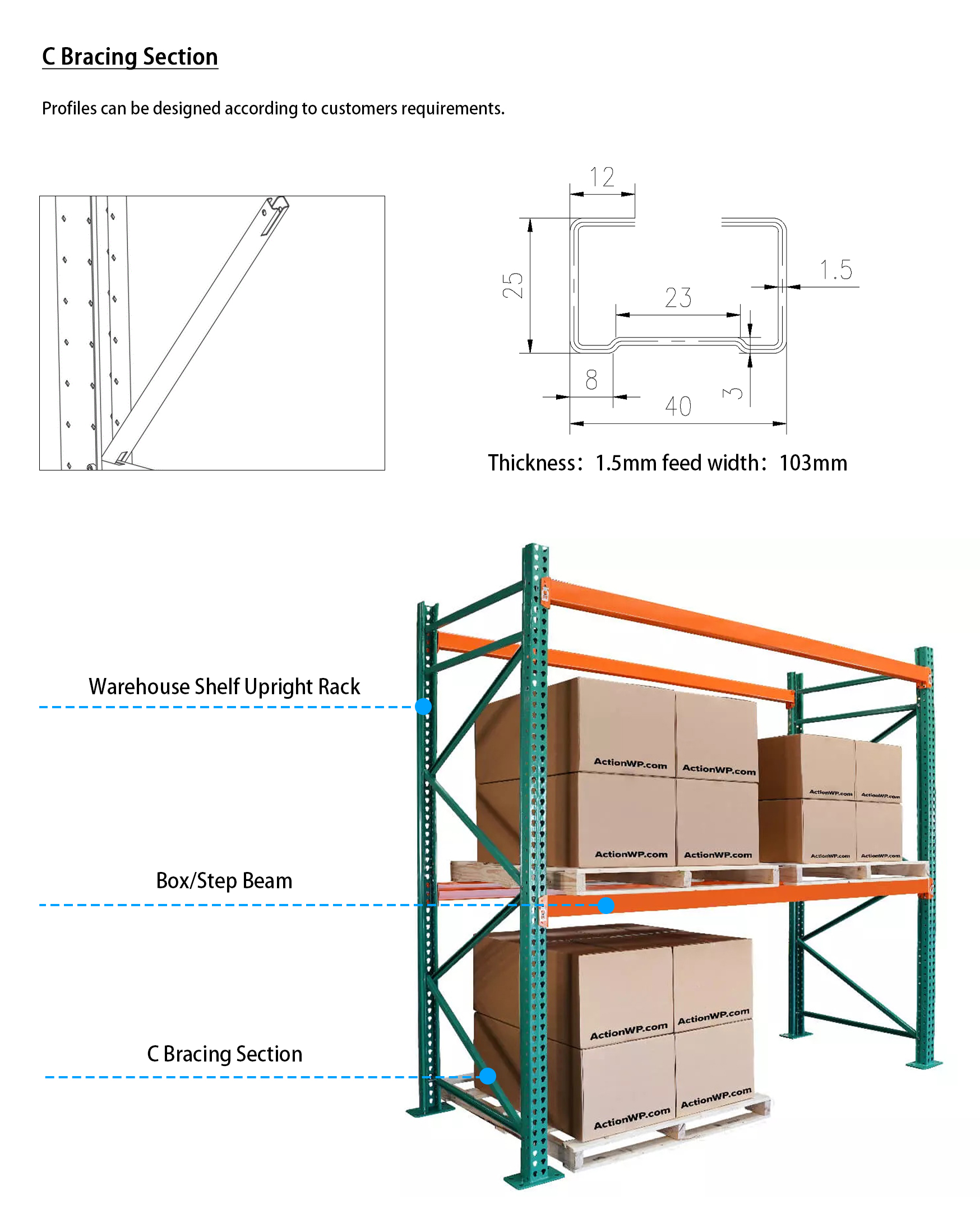

Profile Drawings

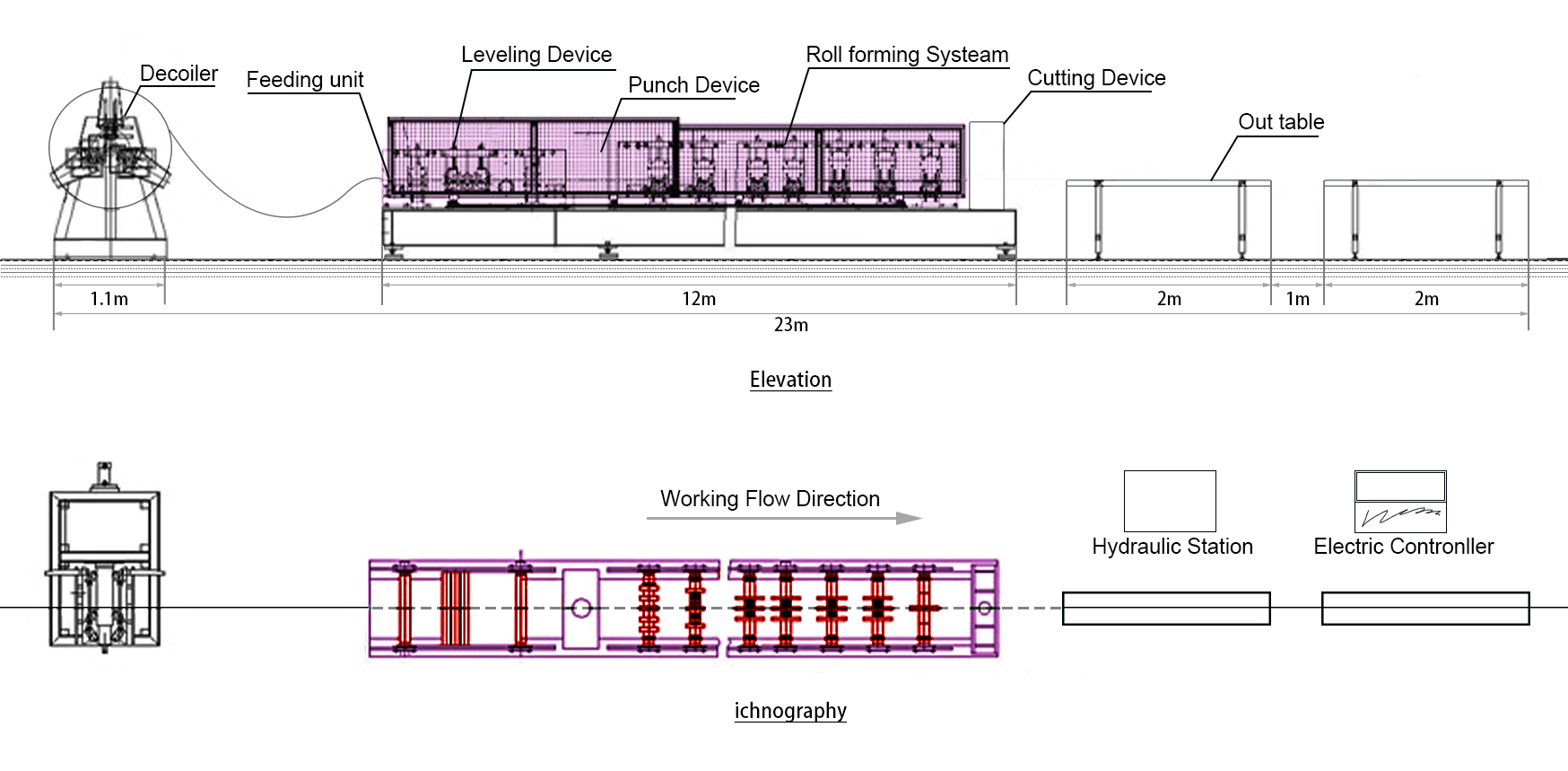

Production Line

Product Details

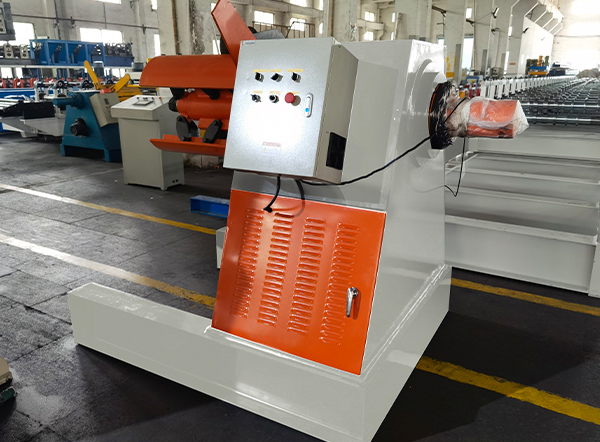

Manual Decoiler Hydraulic Decoiler

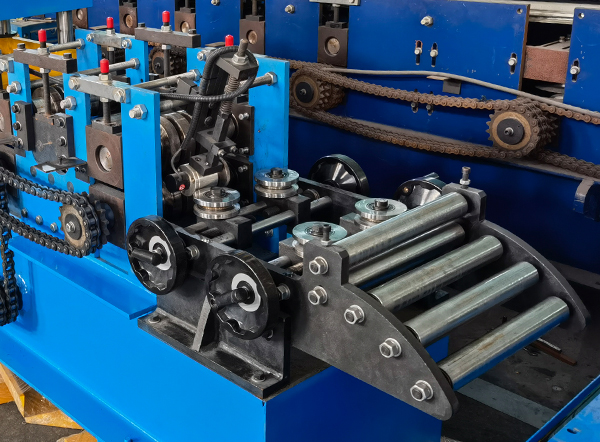

Feeding Hydraulic Punching

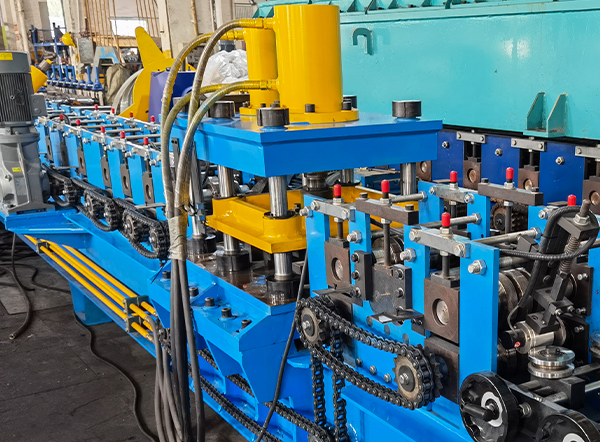

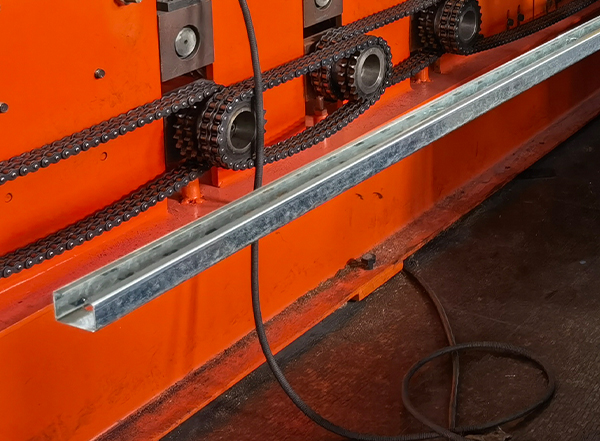

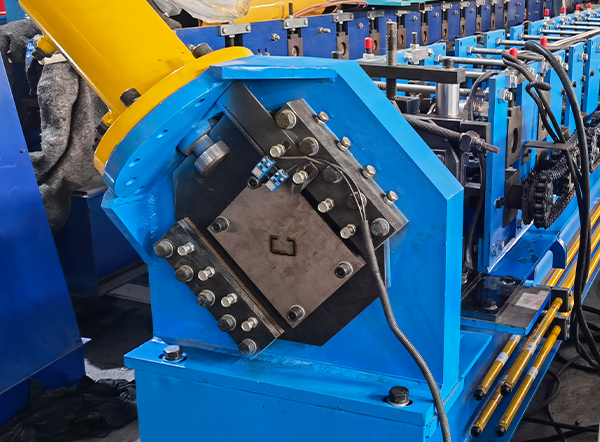

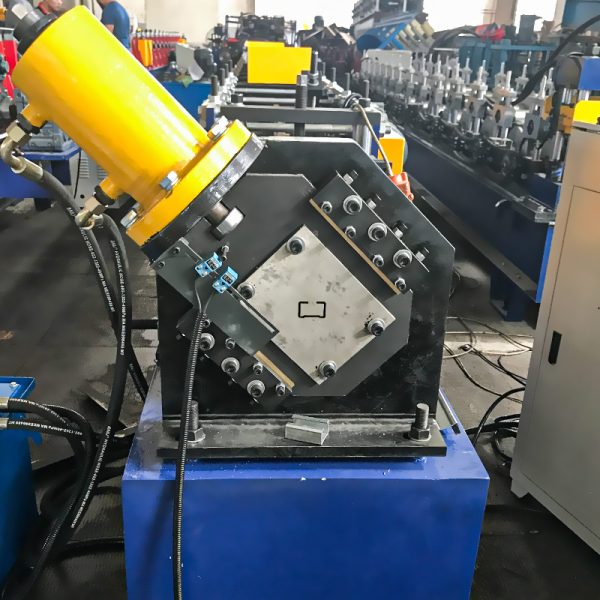

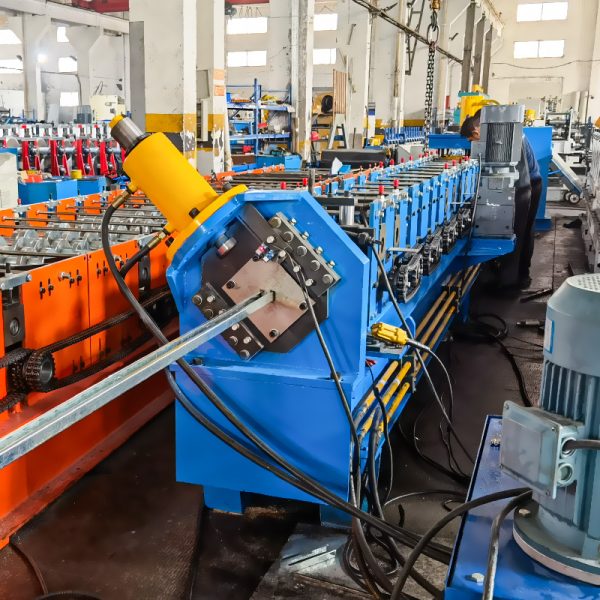

Hydraulic Cutting Roll Forming Machine

Product Paramenters

C Bracing Section Roll Forming Machine
Machinable Material	A) Galvanized Coil	Thickness(MM): 1.5-1.8 as per customer
	B) PPGI, PPGL
	C) Cold-rolled Steel
	D) Carbon Steel
Yield Strength	250 – 350 Mpa
Tensil Stress	350 Mpa-500 Mpa
Nominal Forming Speed(M/Min)	10-15	* Or According To Your Requirment
Forming Station	About 14	* According To Your Profile Drawings
Decoiler	Manual Decoiler	* Hydraulic Decoiler (Optional)
Driving System	Chain Drive	* Gearbox Drive (Optional)
Machine Structure	Steel Plates Welded	* Cast Iron Stands (Optional)
Rollers’ Material	GCr 15	* Cr12Mov (Optional)
Cutting System	Hydraulic Pre-cut
Punching System	Hydraulic Punching
Frequency Changer Brand	Yaskawa	* Siemens (Optional)
Power Supply	380V 50Hz	* Or According To Your Requirment
Machine Color	Industrial Blue	* Or According To Your Requirment
